RC4WD Metal Rear Bed for Mojave Body & Axial SCX10 I/II – Style B

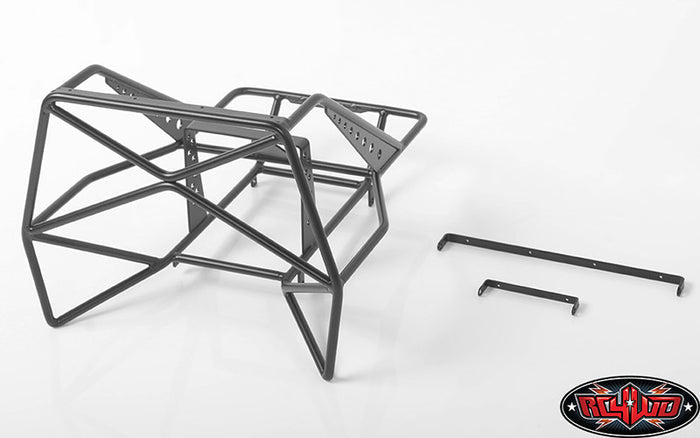

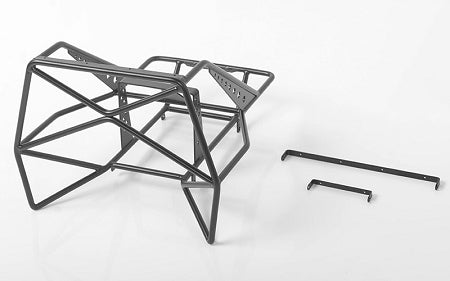

This Style B rear bed is a heavy-duty, hand-welded steel-tube conversion designed for scale truck builds using the RC4WD Mojave cab or Axial SCX10 I/II chassis. It replaces a conventional pickup bed with an open tubular rear platform that adds a tougher trail-truck appearance while retaining practical mounting space for a spare tire and scale accessories.

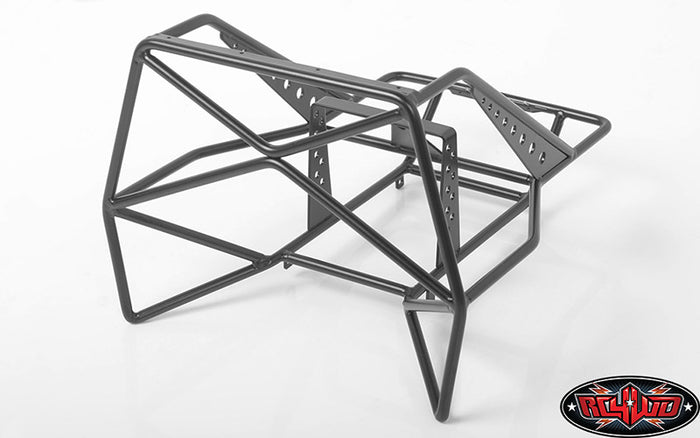

Construction & Finish
- Heavy-duty steel-tube construction
- Hand-welded assembly
- Black powder-coated finish
- Corrosion-resistant surface treatment
- Integrated spare-tire mounting provision
Dimensions & Weight
- Total length: 8.06 in / 204.8 mm
- Total width: 7.05 in / 179.1 mm
- Total height: 5.46 in / 138.5 mm
- Weight: 16.1 oz / 456 g
Fitment
- Axial SCX10 I
- Axial SCX10 II
- RC4WD Mojave body applications when used with the Mojave front cab
The full pickup body is not used with this conversion; RC4WD specifically notes that Mojave-body installations require the cab section. Verify cab mounting, chassis rail position and accessory clearance before final assembly.

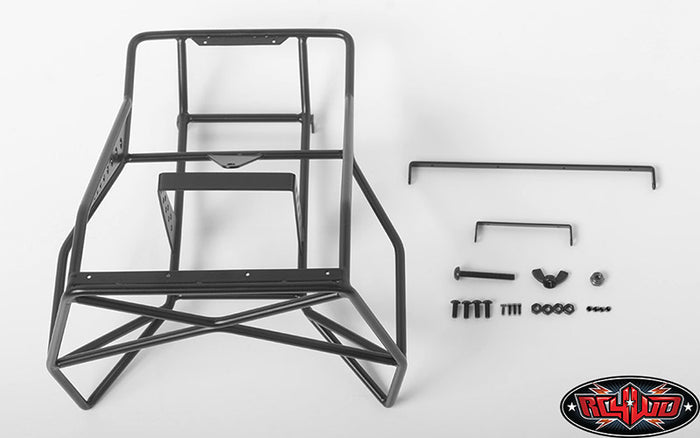

What's Included
- 1x Metal Rear Bed for Mojave Body and Axial I & II – Style B
- 4x M3 x 8 mm steel button-head cap screws
- 1x M4 x 30 mm steel button-head cap screw
- 4x M1.5 x 6 mm black cross-head screws
- 1x M4 black nylock nut
- 4x M3 black regular nuts
- 4x M1 silver regular nuts
- 1x M4 spare-tire mounting knob
Scale Build Potential

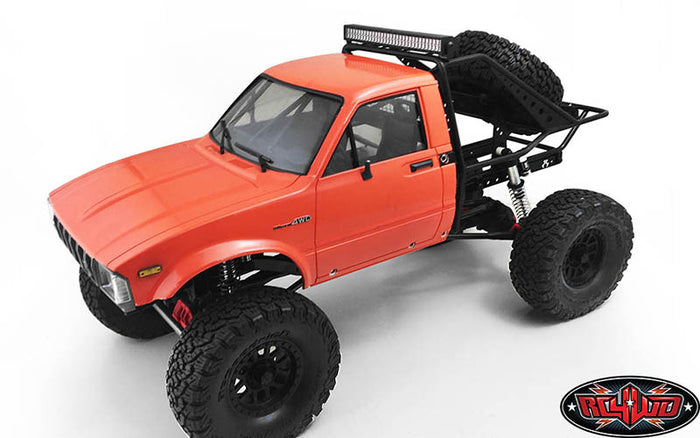

The open tube-bed layout is ideal for spare-tire setups, recovery accessories, LED bars and trail-equipment displays. RC4WD's installation examples show the bed paired with Mojave cab components and additional scale accessories; those accessories are shown for reference and are not included.
GASHEAD RC Installation Note
Because this is a rigid welded metal assembly, chassis alignment matters. Test-fit the bed, cab and rear suspension before fully tightening the hardware. On heavily customized SCX10 or Mojave builds, check tire clearance at full compression and articulation, especially if a large spare tire is mounted high or rearward.
SKU: VVV-C0381
