G82198 – CEN AMP30 2.4GHZ FHSS 3-CHANNEL RADIO SYSTEM – TX + A30 RX
G82198 – CEN AMP30 2.4GHZ FHSS 3-CHANNEL RADIO SYSTEM – TX + A30 RX
G82198 – CEN AMP30 2.4GHZ FHSS 3-CHANNEL RADIO SYSTEM – TX + A30 RX

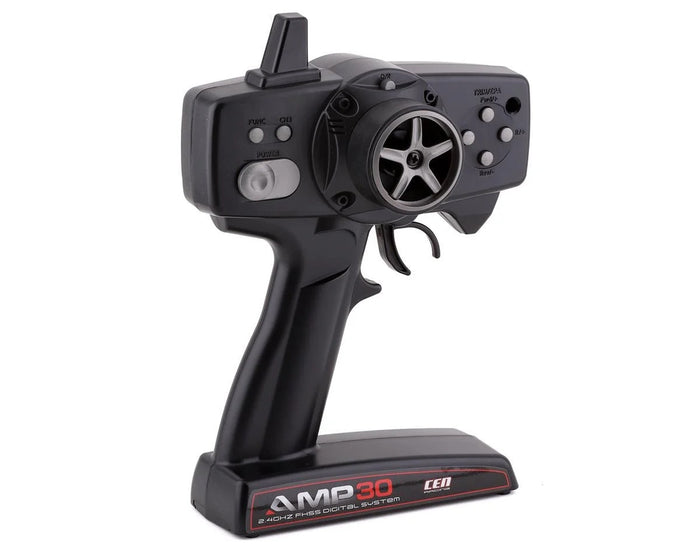

The CEN Racing G82198 AMP30 radio system combines a pistol-grip transmitter with the matching A30 receiver for CEN RC vehicle applications. CEN identifies the system as a 2.4GHz FHSS digital radio, while established CEN dealers confirm a 3-channel layout and a package containing one transmitter and one receiver.
CONFIRMED SYSTEM FEATURES
- Manufacturer: CEN Racing
- Part number / SKU: G82198 / CEGG82198
- Radio system: AMP30
- Frequency: 2.4GHz ISM band
- Protocol: FHSS digital system
- Channels: 3
- Transmitter style: Pistol grip
- Receiver: A30 / AMP30 3-channel receiver
- Transmitter power: DC 6V
- Transmitter batteries: 4 × AA alkaline cells
- Receiver input voltage: DC 4V–9V
- Published open-space range: 100m
- Indicator: Blue LED on transmitter and receiver
CHANNEL ASSIGNMENTS
- CH1: Steering servo
- CH2: ESC / throttle
- CH3: Auxiliary function
TRANSMITTER ADJUSTMENTS
The AMP30 documentation lists digital steering and throttle trims, steering dual-rate adjustment, end-point adjustment, steering and throttle reverse functions, auxiliary-channel control, button lock/unlock, factory reset and a power-alarm function.
RECEIVER FUNCTIONS

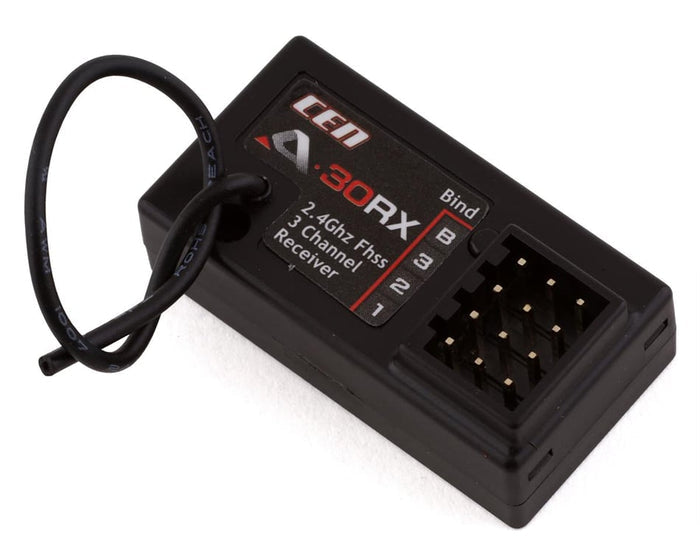

The A30 receiver includes a dedicated binding / fail-safe button. CEN's AMP30 instructions describe both receiver binding and fail-safe position programming so the receiver can move the connected controls to a programmed position if signal is lost.
PACKAGE CONTENTS
- 1 × CEN AMP30 pistol-grip transmitter
- 1 × CEN A30 / AMP30 3-channel receiver
AA batteries are not assumed to be included. The radio requires four AA alkaline cells for transmitter operation, but CEN's current standalone G82198 product listing does not state that batteries are supplied in the package.
INSTALLATION & SETUP NOTES
- Bind the receiver to the transmitter before vehicle operation.
- Connect steering to CH1 and the ESC/throttle lead to CH2.
- Use CH3 only for compatible auxiliary functions.
- Program the fail-safe before driving.
- Keep the receiver antenna extended as instructed; do not coil it tightly.
- Verify steering direction, throttle direction, trims and end points before operating the vehicle.
MANUFACTURER DATA NOT PUBLISHED
CEN's current G82198 retail page does not publish transmitter dimensions, receiver dimensions, total system weight, receiver connector-current limits or waterproof rating. Those values are intentionally not estimated or invented.
