CR1802 – CEN REEPER SC BL-3660 4000KV BRUSHLESS MOTOR – ORIGINAL PART
CR1802 – CEN REEPER SC BL-3660 4000KV BRUSHLESS MOTOR – ORIGINAL PART
CR1802 – CEN REEPER SC BL-3660 4000KV BRUSHLESS MOTOR – ORIGINAL PART
The CEN Racing CR1802 is the factory-style BL-3660 4000KV brushless motor specified for the 1/10 Reeper SC. It is intended as the direct replacement motor for compatible Reeper SC power systems that call for part number CR1802.
CONFIRMED PRODUCT DETAILS
- Manufacturer: CEN Racing
- Part number / SKU: CR1802
- Motor type: Brushless
- Motor size designation: BL-3660
- KV rating: 4000KV
- Confirmed application: CEN Reeper SC 1/10
- Role: Original replacement motor
POWER-SYSTEM MATCHING
CEN's Reeper SC platform uses a 3660-size 4000KV brushless motor in its factory power system. Motor performance and reliability still depend on ESC capability, battery voltage, gearing, tire diameter, vehicle load and cooling. GASHEAD RC recommends matching the exact CR1802 part number and factory gearing before installation rather than selecting by 3660 can size alone.
INSTALLATION NOTES
- Confirm the vehicle calls for CR1802 before installation.
- Verify pinion bore, tooth count and gear pitch separately before reusing or replacing the pinion.
- Set motor-to-spur gear mesh with slight, even backlash across a full spur rotation.
- Secure the motor so it cannot shift under load.
- Check phase-wire connections and rotation direction before driving.
- Monitor motor and ESC temperature after any gearing, tire-size or battery change.
PACKAGE CONTENTS
1 × CEN Racing CR1802 BL-3660 4000KV Brushless Motor. Public manufacturer/distributor listings do not provide a consistent accessory inventory for the standalone CR1802 motor, so GASHEAD RC does not assume a pinion, mounting screws, connectors, fan or ESC are included unless present in the manufacturer package.
IMAGE NOTE

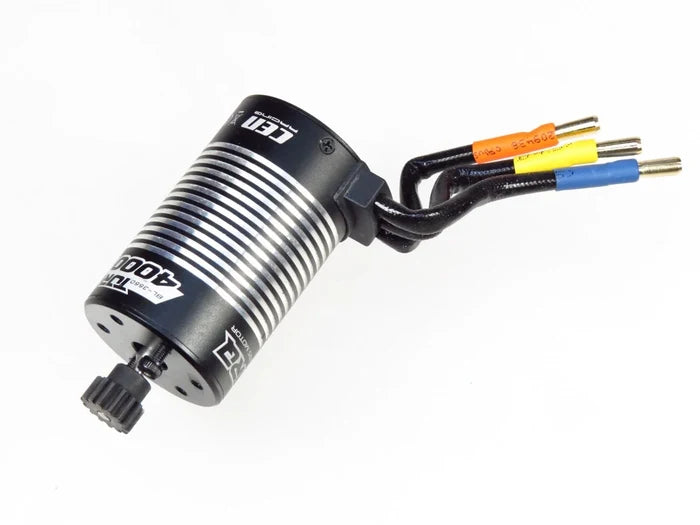

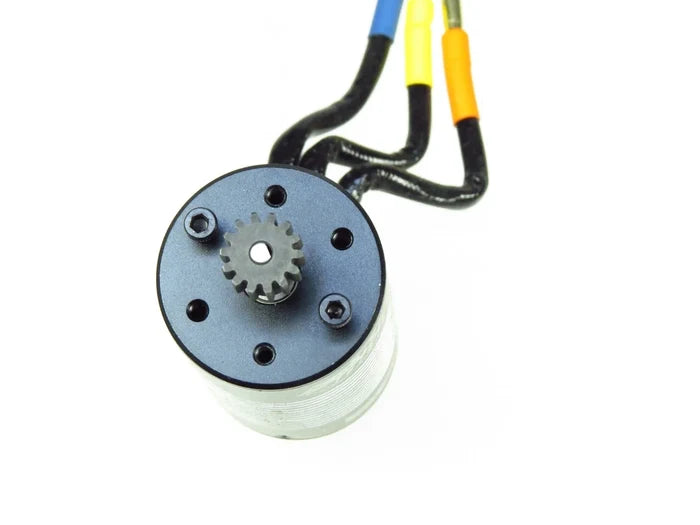

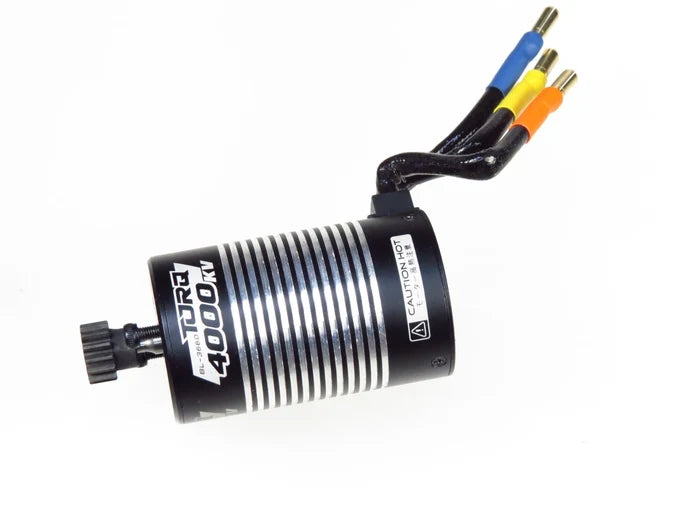

The three product photos shown are exact CR1802 product-reference images sourced from a current CEN-market listing and hosted on the GASHEAD RC Shopify CDN. They are used to show the motor from multiple angles; they are not treated as manufacturer-published specification data.
MANUFACTURER DATA NOT PUBLISHED
CEN's current public information for CR1802 does not publish shaft diameter, shaft length, motor weight, winding resistance, no-load current, maximum continuous current, maximum power, timing angle, rotor specification, bearing specification or a standalone temperature limit. Those values are intentionally not estimated or invented.
