The CEN Racing CKD0375 KAOS Panhard Bar & Steering Tie Rod Set is the black-anodized steering/linkage set used in the CEN F450 DL-Series suspension system. CEN lists CKD0375 as a 57 mm CNC aluminum set in black, supplied as 3 pieces.
CONFIRMED PRODUCT DETAILS
- Manufacturer: CEN Racing
- Product line: KAOS
- Part number / SKU: CKD0375
- Product type: Panhard bar & steering tie-rod set
- Published length: 57 mm
- Construction: CNC aluminum
- Finish: Black anodized
- Quantity: 3 pieces
- Platform: CEN F450 DL-Series suspension system
PACKAGE CONFIGURATION

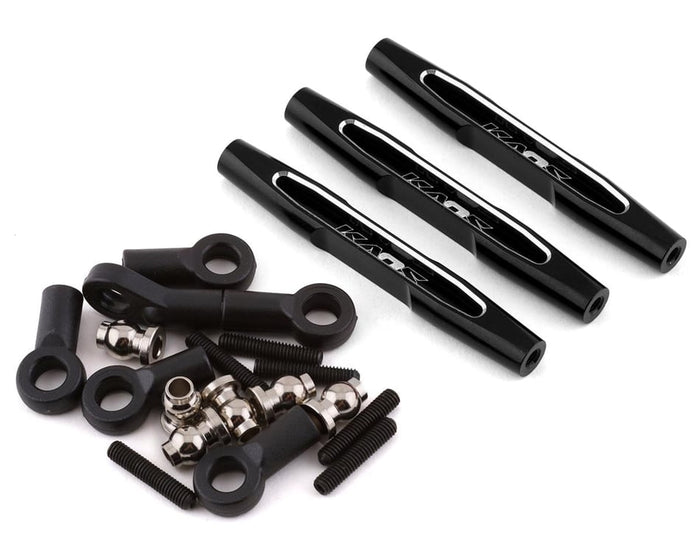

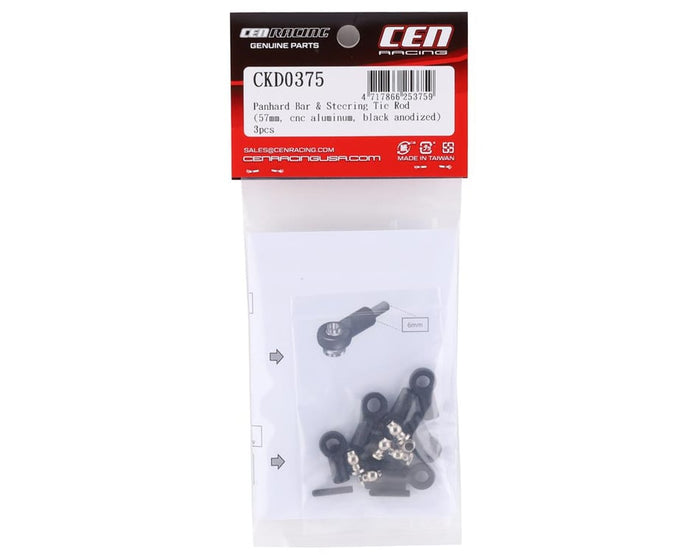

AMain and HobbyTown identify the three-piece CKD0375 package as containing one steering link, one front Panhard link and one rear Panhard link, plus mounting hardware. CCXRC independently describes the black kit as a 3-pack made up of two Panhard bars (front and rear) and the steering tie rod. GASHEAD RC treats the individual piece roles and included hardware as dealer / independent-source corroborated package information.
FUNCTION & GEOMETRY
The Panhard links locate the solid axles laterally relative to the chassis as the suspension moves, while the steering tie rod connects the steering knuckles across the axle. Link length and mounting geometry are therefore important to axle centering, steering relationship and suspension travel. CKD0375 should be installed only in the intended CEN F450 / documented DL-Series geometry.
COMPATIBILITY
CEN includes CKD0375 in its official KAOS F450 Suspension Combo (Black) together with CKD0373, CKD0374, CKD0376 and CKD0377. CEN's combo is listed for the F450 and Sicario. AMain and HobbyTown specifically describe CKD0375 as intended for the CEN Racing F450. GASHEAD RC does not extend fitment to other platforms without documented support.
INSTALLATION NOTES
- Confirm the truck is using the intended F450 / compatible DL-Series steering and axle-link geometry before installation.
- Identify the front Panhard, rear Panhard and steering tie-rod positions before assembling the links.
- Start all threaded hardware by hand to reduce cross-threading risk.
- After installation, verify both axles remain centered through usable suspension travel.
- Check steering lock, tie-rod clearance, Panhard clearance, driveshaft clearance and suspension articulation before driving.
- Recheck mounting hardware and rod-end security after the first driving sessions.
CUSTOMER-REPORTED EXPERIENCE
CEN's current KAOS catalog shows 6 customer reviews for CKD0375. Customer comments are treated as user experience only and are not used as manufacturer-certified steering-precision, durability or strength data.
MANUFACTURER DATA NOT PUBLISHED
CEN's current public listing does not publish individual front/rear/steering-link lengths, thread specification, rod diameter, aluminum alloy grade, anodizing specification, assembled center-to-center dimensions, total set weight, recommended fastener torque, tensile strength, bending strength or quantified steering/suspension improvement. Those values are intentionally not estimated or invented.
Product designation, 57 mm set designation, CNC-aluminum construction, black finish, 3-piece quantity, current manufacturer price/review count and use in CEN's black F450 suspension combo were checked against CEN Racing. Individual piece roles, hardware inclusion and exact-product imagery were corroborated by established dealers / RC sources.
