RC4WD 1.9" LANDIES INTERNAL BEADLOCK WHEELS – WHITE (4) – Z-W0075

Scale-correct Land Rover character, precision-machined construction, and true internal beadlock performance. The RC4WD 1.9" Landies wheels bring the unmistakable utilitarian look of classic Land Rover steel wheels to a premium aluminum crawler wheel. Their clean white powder-coated finish is ideal for Defender, Series, expedition, military, and vintage trail builds that demand authentic proportions without giving up a mechanically retained tire bead.

WHY THESE WHEELS STAND OUT

• CNC-machined aluminum: precise, rigid construction with less rotational mass than a comparable steel wheel.
• Internal beadlock design: the tire beads are mechanically captured inside the wheel, leaving a clean scale face with no external beadlock hardware.
• Classic white finish: durable powder coating gives vintage trail trucks and Land Rover-inspired builds the right period appearance.
• Standard 12 mm hex: designed for widely used 1/10-scale crawler and trail-truck axle interfaces.
• Complete vehicle set: four wheels are included.

OFFICIAL SPECIFICATIONS

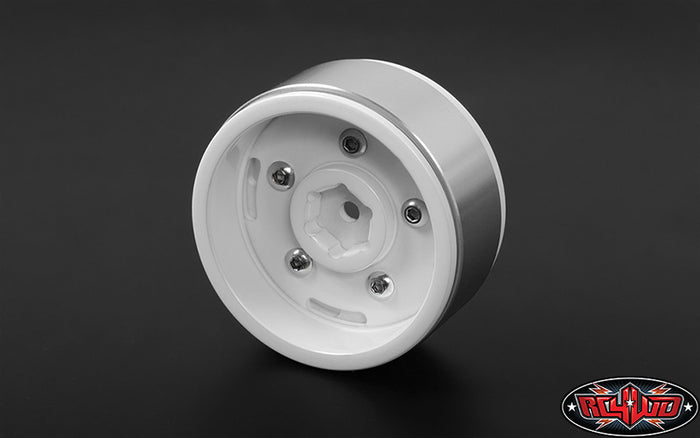

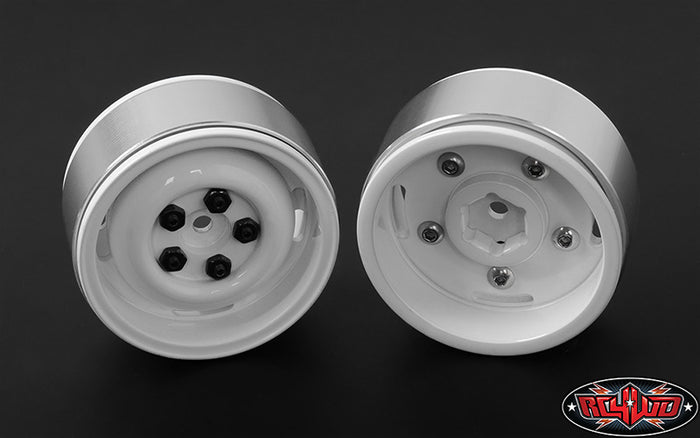

INTERNAL BEADLOCK CONSTRUCTION

The beadlock hardware sits behind the scale wheel face. During assembly, the internal ring supports the tire while the wheel halves clamp both beads. This system helps prevent the tire from peeling away from the rim at low crawler pressures and keeps the visible face clean and realistic.

Center the foam and tire carcass before tightening. Confirm that both beads remain evenly seated around the full 360 degrees, then tighten the hardware gradually in a cross pattern. Do not fully tighten one screw at a time; uneven compression can pinch a bead or distort the tire.

TIRE AND RING COMPATIBILITY

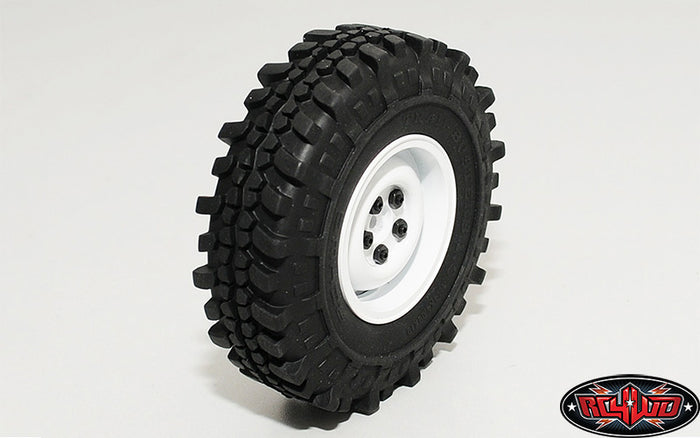

These wheels are shown by RC4WD with the Tomahawk 1.9" tire, Z-T0099; tires are not included. RC4WD also offers the optional Pro-Line Tire Compatible Internal Beadlock Rings, Z-S0846 for this wheel. Use the standard wheel ring for compatible RC4WD tires and the Z-S0846 ring when the intended Pro-Line tire bead requires that dedicated geometry.

Important fitment note: bead thickness and shape vary by tire manufacturer. RC4WD does not guarantee compatibility with every third-party 1.9" tire. A 1.9" diameter label alone does not confirm bead fit. Verify the tire model, wheel SKU, and required internal ring before assembly.

VEHICLE FITMENT

The wheel uses a standard 12 mm hex. RC4WD specifically lists the Gmade Sawback as compatible. RC4WD also shows these wheels on a Gelande II Cruiser equipped with RC4WD 12 mm axle hexes, part Z-S0239; the vehicle, axle hexes, tires, and accessories shown in application photos are not included.

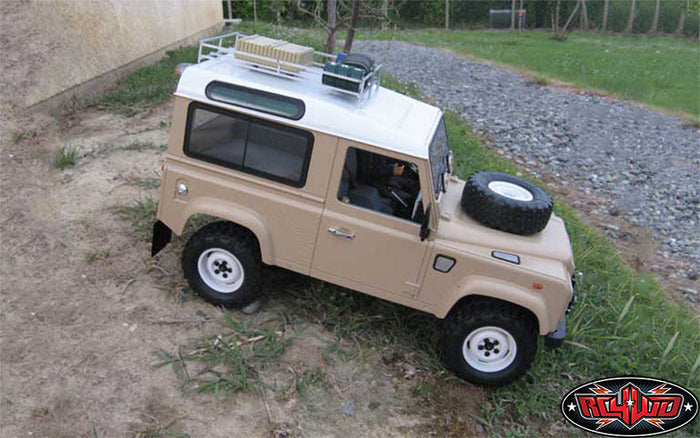

OFFICIAL INSTALLED EXAMPLES

The following manufacturer application images show the Landies wheel across vintage, expedition, and trail builds. Vehicle stance and tire clearance depend on axle width, hub geometry, body, suspension setup, and tire diameter.

WHAT IS INCLUDED

• 4 × RC4WD 1.9" Landies Internal Beadlock Wheels
• Internal beadlock components and wheel assembly hardware

NOT INCLUDED

• Tires and foams
• RC vehicle, body, axles, and 12 mm axle hex conversion parts
• Optional Z-S0846 Pro-Line tire-compatible internal beadlock rings

SERVICE AND REPLACEMENT REFERENCES

RC4WD identifies the following hardware references for service: M3 × 8 mm button-head screws, M2.5 black nuts (Z-S0303), and M2.5 × 8 mm set screws. A single replacement Landies wheel is available separately as Z-Q0028.

GASHEAD RC FITMENT CHECK

Before ordering, confirm four points: 1.9" tire bead design, required internal ring, 12 mm axle hex, and +14.2 mm wheel offset. If any of these differ from your build, contact GASHEAD RC with your vehicle, axle, and tire model so the complete wheel-and-tire system can be checked before installation.
