CD0603 Black F450 SD American Force H01 CONTRA Wheel (w/ Black Cap)

CEN F-450 SD AMERICAN FORCE H01 CONTRA WHEELS – BLACK – CD0603

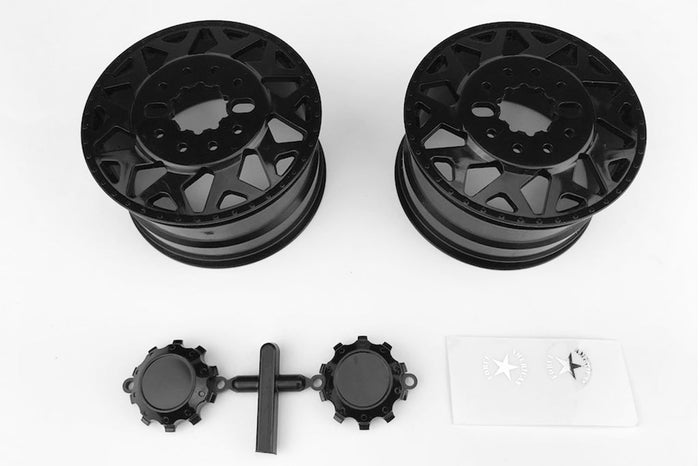

The CEN Racing CD0603 American Force H01 CONTRA Wheel Set is the black-finish version of CEN's H01 wheel package for the F-450 SD / DL-Series platform. Sold as a pair, the package includes two black wheels, two matching black caps and two decals for a coordinated American Force-inspired dually build.

F-450 SD / DL-SERIES APPLICATION

CEN catalogs CD0603 specifically for the F-450 SD DL-Series. AMain also identifies these wheels as intended for the CEN Racing F450. This should therefore be treated as a platform-specific wheel package rather than a universal 1/10 wheel.

• Manufacturer: CEN Racing
• Part Number: CD0603 / CEGCD0603
• Series: DL-Series / F-450 SD
• Wheel Style: American Force H01 CONTRA
• Finish: Black
• Cap Finish: Black
• Quantity: 2 wheels / one pair
• Included Caps: 2
• Included Decals: 2

WHAT'S INCLUDED

• 2x American Force H01 CONTRA Wheels – Black
• 2x Black Wheel Caps
• 2x Decals

The package quantity matters on the F-450 dually platform: one CD0603 package is only one pair, not a complete six-wheel truck set.

FRONT & REAR HUB SYSTEM

CEN lists separate American Force H01 wheel hubs for the F-450 SD platform:

• CD0610 – F-450 SD Front Wheel Hex Hub for American Force H01, +2mm, 2pcs
• CD0611 – F-450 SD Rear Wheel Hex Hub for American Force H01, Narrow, 2pcs

The front and rear hubs perform different spacing functions. On a dually chassis, using the correct hub at each axle position is important for steering clearance, track width and spacing between the dual rear tires.

DUALLY REAR-WHEEL SPACING

Rear dual tires need enough separation that their sidewalls do not continuously rub under load. If the two rear tires touch, the resulting friction can increase drag, heat and uneven wear. Retain the intended CEN rear-hub geometry unless you are deliberately modifying track width and have verified sidewall clearance.

INSTALLATION CHECKLIST

• Confirm the truck is a CEN F-450 SD / compatible DL-Series application.
• Use the correct CD0610 front or CD0611 rear H01 hub for the axle position.
• Inspect hub engagement before tightening wheel hardware.
• Verify front wheel clearance to steering and suspension components at full steering lock.
• Check rear dual-tire sidewall spacing with the vehicle loaded.
• Make sure the wheel and hub seat squarely with no visible wobble.
• Re-check wheel/hub fasteners after the first driving sessions.
• Clean the black finish with non-abrasive methods to avoid scuffing cosmetic surfaces.

WHAT IS NOT PUBLISHED

CEN's current CD0603 listing does not publish wheel diameter, wheel width, offset, backspacing, wheel weight or detailed material specification. GASHEAD RC does not infer those figures from appearance or from unrelated variants. For a custom non-CEN application, exact physical measurements should be taken before assuming fitment.

BLACK VS. CHROME H01

CD0603 is the black-finish H01 CONTRA option with black caps. The chrome counterpart is CD0604. The visual treatment is different, but both remain part of the same F-450 SD American Force H01 wheel family and rely on the appropriate CEN hub system.

GASHEAD RC NOTE

For an F-450 dually build, plan the wheel quantity and hub hardware together. The common mistake is to look only at the wheel style and forget that each package contains two wheels and that CEN uses different front and rear H01 hubs. Correct hub selection is what keeps the stance, steering clearance and dual-rear spacing where they should be.
